Custom LED Display configurations featuring robust structural design and weatherproofing for performance in outdoor settings

Custom LED Display configurations featuring robust structural design and weatherproofing for performance in outdoor settings

Nom De Marque:	LIGHTBO
Numéro De Modèle:	LB3280EWH-3S-T1-D
Nombre De Pièces:	1000
Prix:	Negotiate
Conditions De Paiement:	TT, Western Union
Capacité à Fournir:	50000 pièces/jours

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Shenzhen, Chine

Certification:

ISO9001&ROHS

Polarité:

Anode commune

Pixels:

10 mm, 6 mm, 8 mm, 2,5 mm, non

Dimension de l'écran:

Taille personnalisée, 496x496mm,40.5*16.0mm, sur mesure, 50 cm de long

Couleur de la puce du tube:

Couleur, rouge, vert, bleu, couleur personnalisée

Usage:

Intérieur, extérieur, semi-extérieur, comptoir, machine à laver

Fonction d'affichage:

Vidéo, graphiques, animation, image, image

Garantie:

2 ans,3 ans,5 ans,2-3 ans,Deux ans

Nom du produit:

Affichage LED d'intérieur P5, affichage numérique LED à chiffres HQ-CP50, acheter une horloge de

Luminosité:

5000cd/m²,6000 cd/m2,400-1000cd/m²,haute luminosité,1800CD

Durée de vie:

100 000 heures, 100 000 heures, 000 heures

Taille du module:

160x160mm,320mm*160mm,288*120mm,576mm*576mm,512*512mm

PUCE LED:

Epistar, étoile de la Nation, Sanan, Cri + Nichia + Epistar + Opto + Silan

Couleur:

Polychrome, 1R1G1B, personnalisé

Taille de l'armoire:

496x496x62mm,500mm x 500mm,512*5120mm,500*500mm,personnalisé

Pas de pixels:

Affichage LED de location 6 mm, P3,91 mm P4,81 mm, 4,2,5 mm

Application:

Panneau publicitaire extérieur/intérieur, intérieur, publicité extérieure Led, appareil ménager/comp

Densité de pixels:

27777 points/m2,65536,16000 points/m²

Article:

affichage mené polychrome flexible, affichage mené par coutume d'anode de 0,56 pouces, affichage

Alimentation:

G-energy, CL, alimentation CA ou 12 V CC, MeanWell ou même marque de qualité, MeanWell

Matériau du meuble:

fer, aluminium moulé sous pression, magnésium et alliage d'aluminium

Détails d'emballage:

EPE+Carton

Capacité d'approvisionnement:

50000 pièces/jours

Description du produit

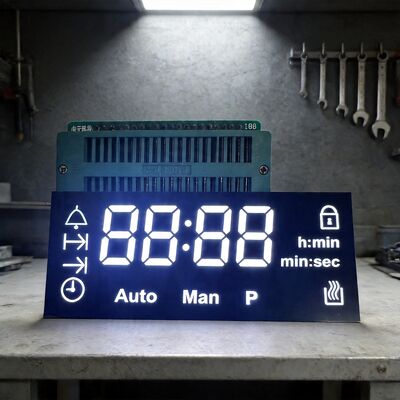

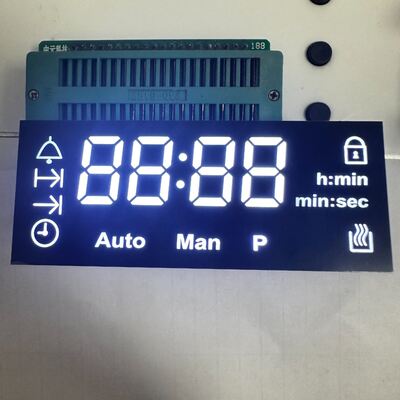

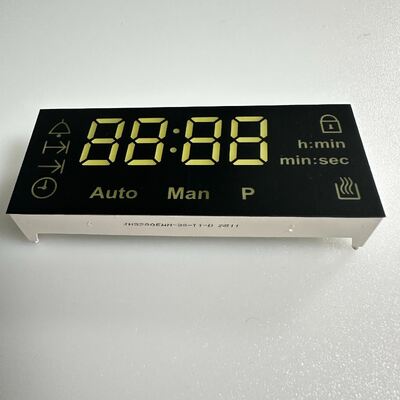

Ultra Bright LED Display for Ovens with Customizable Features

High-performance LED displays engineered for industrial applications with superior brightness and reliability.

Product Features

Forward voltage with high luminous intensity output
Low power consumption
Extremely low current operation
Evenly distributed luminous segments
Industrial standard size compatibility
Excellent reliability in bright ambient light
Stable performance characteristics
Long operational lifetime
RoHS/REACH compliant

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric displays and indicators
Multimedia products
Digital indicators for temperature, humidity, and process monitoring

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
