Customized Ultra Red/White/Blue 4-Digit 14-Segment Alphanumeric LED Display

Customized Ultra Red/White/Blue 4-Digit 14-Segment Alphanumeric LED Display

Nom De Marque:	LIGHTBO
Numéro De Modèle:	LB5017IRBWH1B-SMT
Nombre De Pièces:	1000
Prix:	Negotiate
Conditions De Paiement:	T/T, Union occidentale
Capacité à Fournir:	20000 pièces par jour

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Shenzhen ， Chine

Certification:

ISO9001&RoHS

Garantie:

2 ans

D'autres couleurs:

Ultra Rouge/Blanc/Bleu

Luminosité:

Tension inversée:

Courant direct:

Application:

indicateurs numériques d'appareils inddor

Détails d'emballage:

EPE + Carton

Capacité d'approvisionnement:

20000 pièces par jour

Mettre en évidence:

customized 14-segment LED display

4-digit alphanumeric LED display

ultra red white blue LED

Description du produit

Customized Ultra Red/White/Blue 4-Digit 14-Segment Alphanumeric LED Display

Product Specifications

Parameter	Specification	Remarks
Product Name	Customized Ultra Red/White/Blue 4-Digit 14-Segment Alphanumeric LED Display	Other configurations available
Part Number	LB5017IRBWH1B-SMT	Custom part number printing supported
Number of Digits	5-digit	2, 3, 4, 5, 6 digits available
Emitted Color	Ultra Red/White/Blue	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode
Lifespan	>80,000 hours
Free Samples	Available
Sample Lead Time	5-7 working days	Tooling samples: 15-20 working days
Production Lead Time	15-20 working days	Varies with order quantity
OEM/ODM	Supported	Based on customer's drawing or requirements
LOGO Printing	Supported	Based on customer's design
Minimum Order Quantity (MOQ)	1,000 PCS	100-500 PCS acceptable for initial order

Product Features

High-Contrast Readability: Crisp white segments on a deep black background deliver sharp, unambiguous visibility.
High-Intensity Illumination: Superior luminous intensity ensures excellent readability even in brightly lit environments.
Optimized Power & Reliability: Engineered for low power consumption and unwavering long-term performance.
Seamless Aesthetic: Uniformly continuous segments create a consistent and clean visual display.
Simplified Integration: Designed for easy PCB mounting and direct IC compatibility for quick assembly.
Eco-Conscious Compliance: Fully conforms to RoHS environmental standards.

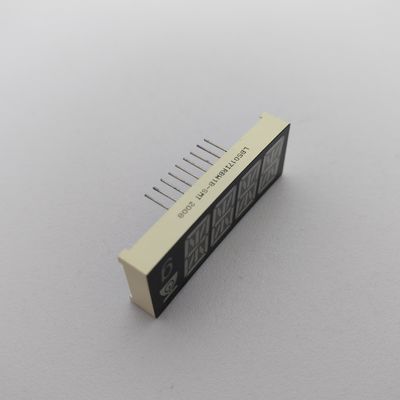

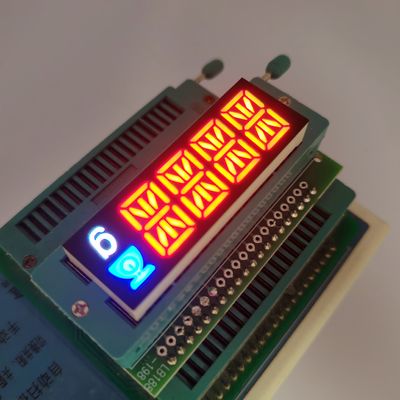

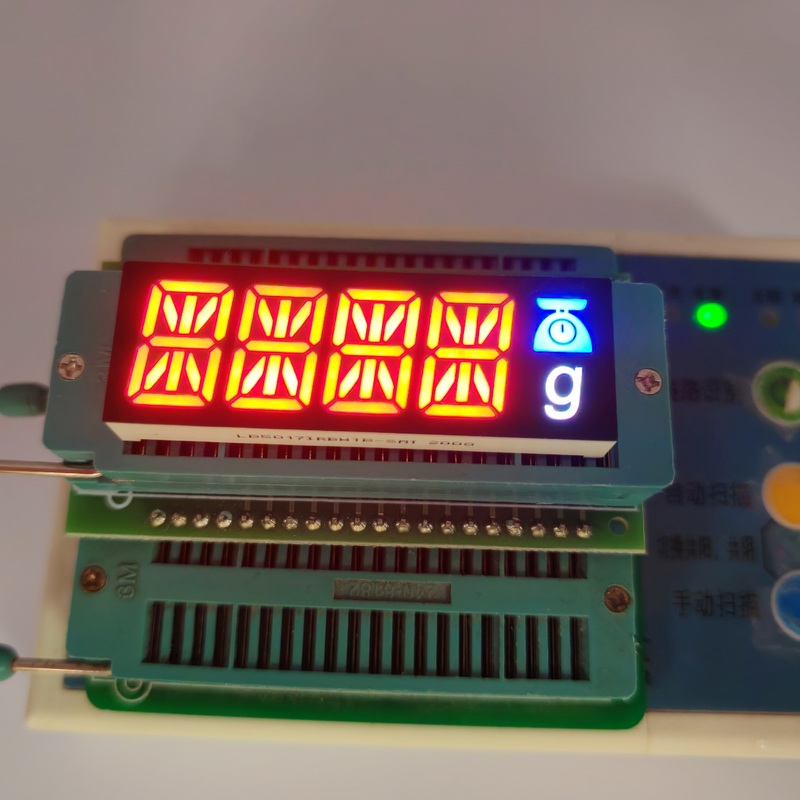

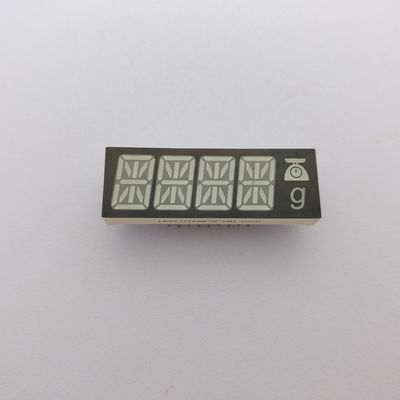

Product Photos

Company Overview

Established in 2006, Shenzhen Guangzhibao Technology Co., Ltd. (Brand: LIGHT-BO) is a high-tech enterprise specializing in the research & development, production, and sales of optoelectronic LED displays. Our diverse product portfolio includes 7-segment LED displays, alphanumeric LED displays, dot matrix LED displays, LED backlights, through-hole LEDs, SMD LEDs, and more.

Renowned for their cost-effectiveness, low power consumption, long lifespan, and reliable performance, our products are widely utilized in home appliances--particularly kitchen appliances such as ovens, range hoods, and refrigerators/freezers--as well as in various instrument panels for displaying temperature, humidity, counters, process indicators, and more.

Delivery Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
EDT (days)	5	15	pending

Certifications

Technical Parameters

Yellow Green - J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25 ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Product Applications

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, LED backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. However, we also accept sample orders and small orders with quantities less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes, we can provide 5 -10 free samples for testing, but the freight cost will be borne by the customer.
